Switch Pros Sp9100
Switch Pros Sp9100
Switch Pros Sp9100
Switch Pros Sp9100
Switch Pros Sp9100

Switch Pros Sp9100

£592.27 (ex. VAT)

Panel Power


Putting an end to dashboard clutter is easy, with the Switch-Pro 8100 Switch Panel Power System. Featuring eight user-programmable switches, this compact panel is the most advanced and versatile on the market. Compatible with iPhone and Android based Smart Phones, you can command your vehicle accessories with the touch of your handset screen.

The 100 amp power module is built with solid-state, automotive components, and uses no mechanical relays or fuses. It is COMPLETELY SEALED, allowing you to mount it under the hood of your rig. The module monitors ignition and lights input, features built-in, over-temperature and over-current protection, allows you to choose Ignition or Battery input for any/all of your accessories, and allows for a designated Master Switch.

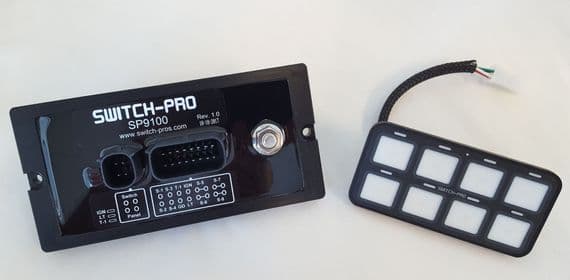

SWITCH-PROs 9100 8 switch power module.

Eight user-programmable switches
Four 35A circuits and four 18A circuits, with over-current and short circuit protection
Waterproof, Solid State 125A Power Module
RGB Backlighting provides unlimited color options, using Color Picker on App
Daisy Chain up to 3 Switch Panels to One Power Module
Switches can be programmed for:
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Memory Function
- Master Mode, with ability to turn multiple outputs On AND Off with one touch
- Automatic Power-Up upon vehicle start up
Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
Sleep Mode for minimal power consumption
Color Coded Output wires
100 User-selectable switch legends
LED Input Status Indicators for easy troubleshooting
Time Delay Off function available for all circuits
Splash proof switch panel with Polycarbonate overlay faceplate
Program and control the system from switch panel pad or smart phone
Bluetooth interface with FREE Apple or Android App
Battery Voltage Readout on App screen
No Fuses or Bulky Relay box
Built-In Bluetooth Module

Switch Panel Specs:
RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
Built-In Bezel Style Switch Panel enclosure measures 4 L x 2 W x .375 H ; includes concealed mounting hardware for factory-look installation
Orange LED switch indicators
100 User-Selectable Legends

Power module
8 Outputs: 4 rated @ 35A, 4 rated @ 18A
125A maximum rating
Waterproof and Solid State
6L x 3W x .5H (excluding connectors)
LED Input Status Indicators for easy troubleshooting
Underhood rated 125°C to -40°C

Kit also Includes:
11 of Communication Cable between Switch Panel and Power Module
Color Coded Output wires
Wire harness with Waterproof, sealed automotive grade connectors
Power Cable with 125A inline fuse
